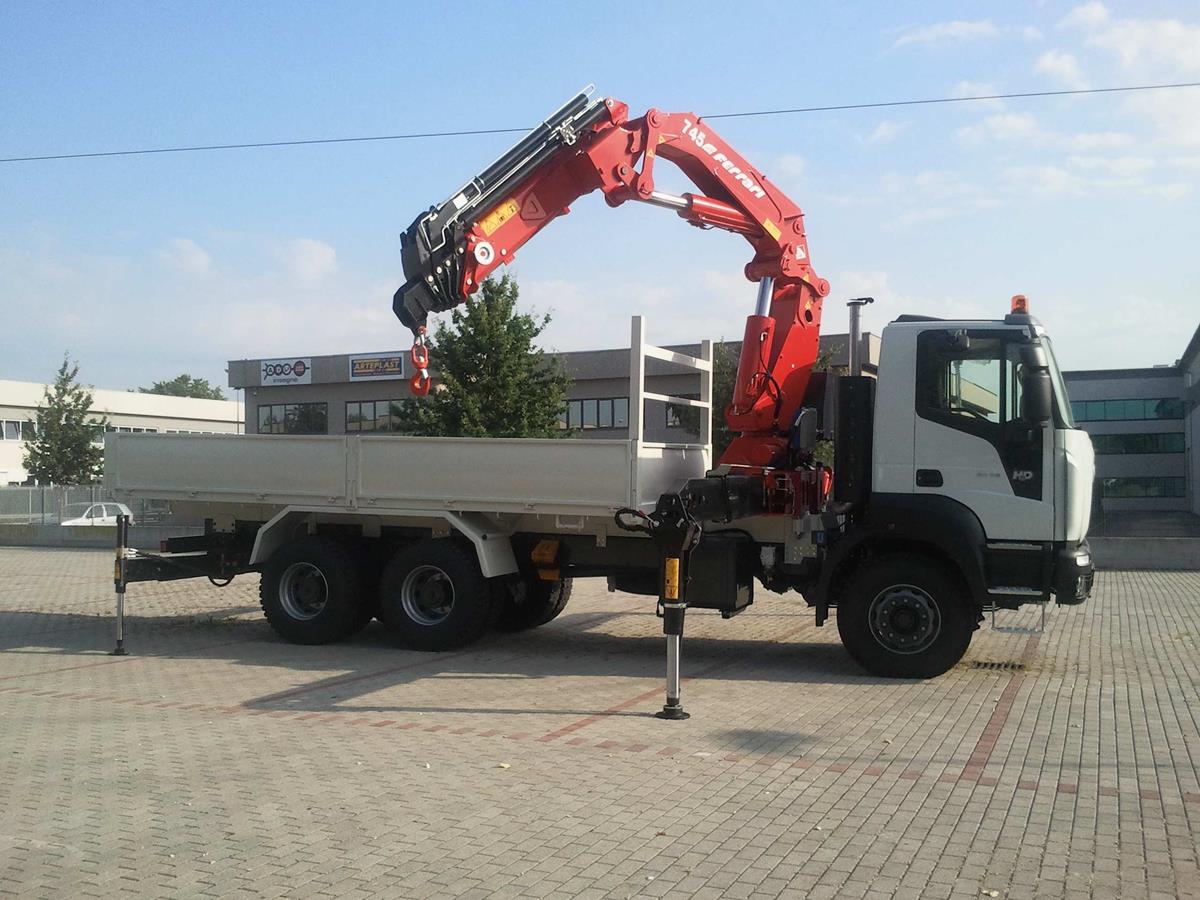

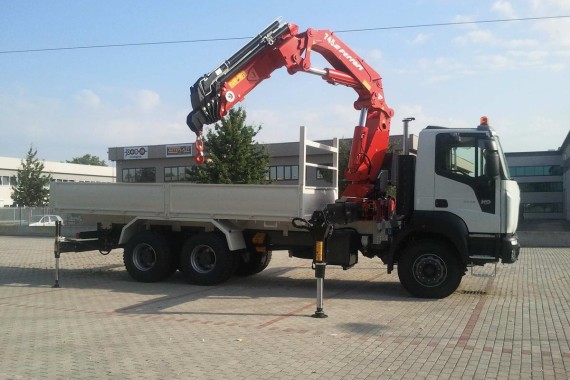

745
 |
Lifting moment: 45.1 tm |
 |
Slewing angle: 400º |
 |
Max. working pressure: 305 bar |
 |
Oil flow: 80 l/min |
 |
Oil tank: 210 l |
 |
Standard weight: 4280 kg |
 |
Standard stabilizers: 5050 mm |
 |
Suggested truck: GVW 24 t |
STANDARD
- Cast base
- Red Power and Negative angle
- Safety valves
- EQS (Extension Quick System)
- Dual manual controls (not with radio remote control)
- Hydraulic Load Limiting Device
- Self-lubricating bushings
- Swivel load hook
- Turning stabilizers
- Rack and pinion slewing system
OPTIONAL
- Manual extensions
- Extra wide stabilizers: 7400 mm
- Automatic turning stabilizers
- RLC
- Extra functions
- Oil cooler
- Additional cross beams
- Hydraulic winch
- JIB
PDF BROCHURE
745 versions
